Understanding the Coefficient of Performance (COP) of Heat Pumps: A Comprehensive Guide

When evaluating heat pump efficiency, one key metric is the Coefficient of Performance (COP). This value indicates the heat pump's performance and is important to understand when evaluating energy efficiency and cost-effectiveness. This post will delve into what COP is, how it's calculated, and why it matters when choosing a heat pump.


Calculating Coefficient of Performance COP

What is the Coefficient of Performance (COP)?


The Coefficient of Performance (COP) is a ratio that measures a heat pump's efficiency by comparing the amount of heating provided to the amount of electrical energy consumed. It tells you how much energy the heat pump produces for every unit of energy it consumes. A higher COP indicates a more efficient heat pump.


How is COP Calculated?


The formula to calculate COP is relatively straightforward:


COP = Heat Output (in watts) / Electrical Energy Input (in watts)

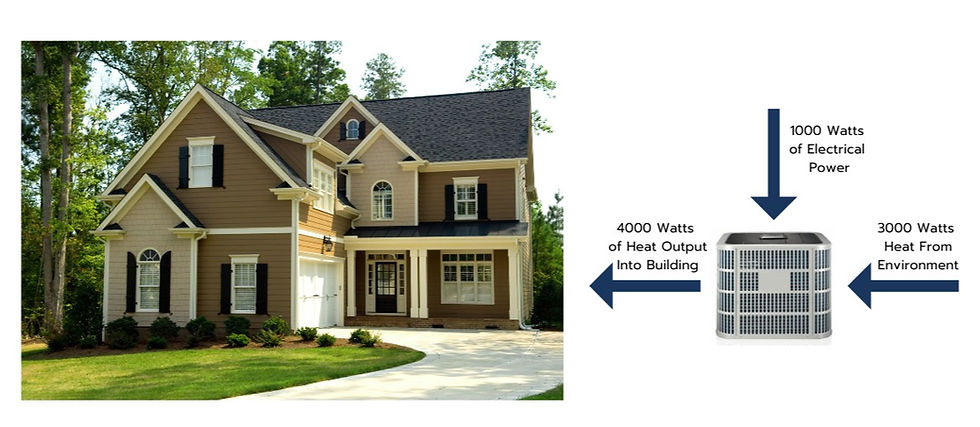

For instance, if a heat pump uses 1,000 watts of electricity to produce 4,000 watts of heat, its COP would be 4.0. This implies that the heat pump outputs four watts of heat for every watt of electricity.


Factors Affecting Heat Pump COP


Several factors can influence the COP of a heat pump, including:


  • Ambient Temperature: The temperature of the environment where the heat pump is installed significantly affects its efficiency. Generally, heat pumps are more efficient in milder climates because they do not have to work as hard to maintain a temperature difference.

  • Heat Source and Sink: The medium from which the heat pump is transferring heat (air, water, or ground) also impacts the COP. Ground-source heat pumps typically have higher COPs than air-source pumps due to the more stable underground temperatures than the air.

  • Quality and Maintenance: A well-maintained heat pump operates more efficiently. Regular maintenance helps ensure the components are in good working order, which can help maintain or improve the COP over time.



Cooling Mode
Cooling Mode


Why COP Matters


  • Energy Savings: A higher COP means more heat is produced per unit of electricity consumed, which translates to lower energy bills. Investing in a heat pump with a high COP can lead to significant savings, especially in regions with harsh winters or hot summers.

  • Environmental Impact: Heat pumps with high COPs are more energy-efficient and have a smaller carbon footprint. By consuming less electricity, these systems contribute less to greenhouse gas emissions, assuming the electricity is generated from fossil fuels.

  • Cost-Effectiveness: While heat pumps with higher COPs might have a higher initial cost, their operational costs are generally lower. This makes them more cost-effective in the long run, especially given the rising energy prices.

  • Regulatory Compliance and Incentives: Many regions offer incentives for installing high-efficiency heat pumps, such as tax rebates or grants. Moreover, local energy efficiency regulations can be crucial for new constructions or renovations.


Moving Heat vs. Creating Heat


Traditional heating systems, like electric or gas furnaces, create heat through combustion or resistance heating. For example, in an electric heater, electrical energy is converted directly into heat through resistance in a material, and all the heat energy produced comes from the electricity used. These systems generally have an efficiency rating of less than 100% because some input energy is lost, typically as exhaust or in the conversion process.


On the other hand, heat pumps do not create heat; they move heat from one place to another. This is a crucial distinction because moving heat is inherently more efficient than generating it from scratch.


Heating Mode
Heating Mode

How Heat Pumps Move Heat


Heat pumps operate on the principle of heat transfer, using a refrigerant and a cycle of evaporation and condensation:


  • Evaporation: Inside the heat pump, the refrigerant absorbs heat from the surrounding environment (such as the air, ground, or water) as it changes from a liquid to a gas in the evaporator coil.

  • Compression: The gaseous refrigerant is then compressed by a compressor, which increases its temperature and pressure.

  • Condensation: The hot, high-pressure gas moves through the condenser, releasing the absorbed heat into the heating system of a building. As it releases heat, the refrigerant condenses back into a liquid.

  • Expansion: Finally, the refrigerant passes through an expansion valve, decreasing its pressure and temperature, ready to absorb heat again.



Why Heat Pumps Are Efficient


Because heat pumps are transferring existing heat rather than generating it by consuming a fuel or using resistance, they can achieve a COP (Coefficient of Performance) greater than 1.


This means they can move more energy as heat than the electrical energy they consume to run the compressor and other components. In many cases, for every unit of electricity the heat pump uses, three to four units of heat (or more) can be moved, making heat pumps an energy-efficient alternative to traditional heating systems.


The Role of Environment


The efficiency of a heat pump, reflected in its COP, is influenced by the temperature differential between the source (from where heat is extracted) and the destination (to where heat is moved). In milder climates or with ground-source heat pumps, where temperature variations are less extreme, heat pumps can operate at an even higher efficiency.


Coefficient of Performance COP

Conclusion


Understanding that heat pumps transfer heat rather than create it is crucial when considering a new heating or cooling system. This ability allows heat pumps to output more energy as heat than the energy consumed in electrical power. The evaporation, compression, condensation, and expansion cycle enhances this transfer process, making heat pumps highly efficient. This efficiency reduces operational costs and significantly contributes to environmental sustainability by lowering energy consumption.


When selecting a heat pump, you will want to consider factors like the Coefficient of Performance (COP), installation costs, the climate of your area, and potential energy savings. By weighing these factors, you can make decisions that balance upfront costs with long-term benefits, ultimately leading to financial savings and a reduced environmental footprint.
